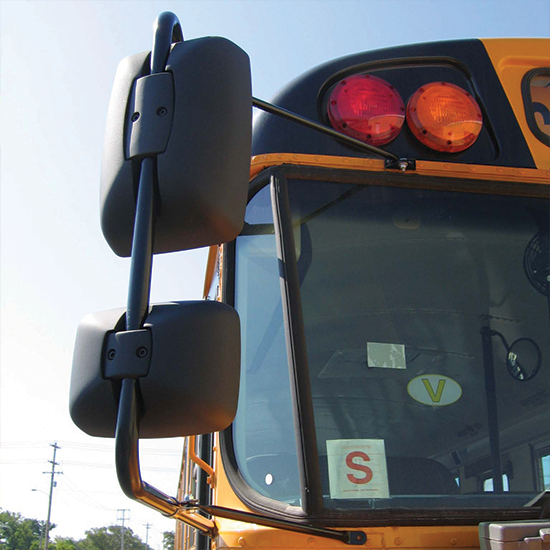

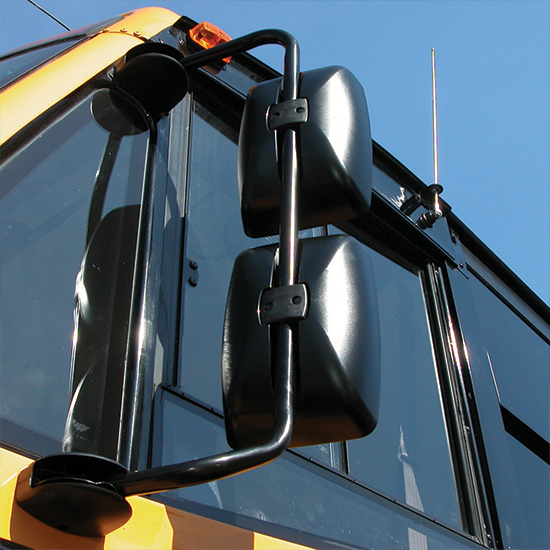

The Open-View^® mirror system is a dynamic two head mirror configuration which offers a “view” between flat and convex mirror heads for drivers who prefer to have a non-continuous image transition in the mirror lenses and adjustable forward sightline views around two separate mirror heads.  The standard Open-View^® and oversized Open-View ES^® (Equal Size) mirror heads are designed with a clean and simple modern shape, while maximizing viewable lens to housing size, and head to weight ratios.  The mounting application is 1” black or stainless steel O.D. tube.  The heads are available in all configurations ranging from hand adjustable, to heated, to heated/remote.

BLUEBIRD OPENVIEW® ES 8" X 12" FLAT & 8" X 12" CONVEX TYPE "D"
PART NO	DESCRIPTION
D3D2311570	Hand adjustable
D3D2312570	Heated, hand adjustable
D3D2311460	Remote, non-heated
D3D2312460	Heated, remote

BLUEBIRD OPENVIEW® ES 8" X 12" FLAT & 8" X 12" TYPE "C"
PART NO	DESCRIPTION
D3D1311570	Hand adjustable
D3D1312570	Heated, hand adjustable
D3D1311460	Remote, non-heated
D3D1312460	Heated, remote

IC CORP. OPENVIEW® ES 8" X 12" FLAT & 8" X 12" CONVEX TYPE "D"
PART NO	DESCRIPTION
D8P2311570	Hand adjustable
D8P2312570	Heated, hand adjustable
D8P2311460	Remote, non-heated
D8P2312460	Heated, remote

IC CORP. OPENVIEW® ES 8" X 12" FLAT & 8" X 12" TYPE "C"
PART NO	DESCRIPTION
D8P1311570	Hand adjustable
D8P1312570	Heated, hand adjustable
D8P1311460	Remote, non-heated
D8P1312460	Heated, remote

THOMAS BUILT BUSES OPENVIEW® ES 8" X 12" FLAT & 8" X 12" CONVEX TYPE "D"
PART NO	DESCRIPTION
D2A2311570	Hand adjustable
D2A2312570	Heated, hand adjustable
D2A2311460	Remote, non-heated
D2A2312460	Heated, remote

THOMAS BUILT BUSES OPENVIEW® ES 8" X 12" FLAT & 8" X 12" TYPE "C"
PART NO	DESCRIPTION
D2A2311570	Hand adjustable
D2A2312570	Heated, hand adjustable
D2A2311460	Remote, non-heated
D2A2312460	Heated, remote

BLUEBIRD OPENVIEW® 8" X 12" FLAT & 8" X 6" CONVEX TYPE "D"
PART NO	DESCRIPTION
D3D2311550	Hand adjustable
D3D2312550	Heated, hand adjustable
D3D2311440	Remote, non-heated
D3D2312440	Heated, remote

BLUEBIRD OPENVIEW® 8" X 12" FLAT & 8" X 6" TYPE "C"
PART NO	DESCRIPTION
D3D1311550	Hand adjustable
D3D1312550	Heated, hand adjustable
D3D1311440	Remote, non-heated
D3D1312440	Heated, remote

IC CORP. OPENVIEW® 8" X 12" FLAT & 8" X 6" CONVEX TYPE "D"
PART NO	DESCRIPTION
D8P2311550	Hand adjustable
D8P2312550	Heated, hand adjustable
D8P2311440	Remote, non-heated
D8P2312440	Heated, remote

IC CORP. OPENVIEW® 8" X 12" FLAT & 8" X 6" TYPE "C"
PART NO	DESCRIPTION
D8P1311550	Hand adjustable
D8P1312550	Heated, hand adjustable
D8P1311440	Remote, non-heated
D8P1312440	Heated, remote

THOMAS BUILT BUSES OPENVIEW® 8" X 12" FLAT & 8" X 6" CONVEX TYPE "D"
PART NO	DESCRIPTION
D2A2311550	Hand adjustable
D2A2312550	Heated, hand adjustable
D2A2311440	Remote, non-heated
D2A2312440	Heated, remote

THOMAS BUILT BUSES OPENVIEW® 8" X 12" FLAT & 8" X 6" TYPE "C"
PART NO	DESCRIPTION
D2N1311550	Hand adjustable
D2N1312550	Heated, hand adjustable
D2N1311440	Remote, non-heated
D2N1312440	Heated, remote

ROSCO OPENVIEW® & OPENVIEW ES® MIRRORS AND REPLACEMENT PARTS
PART NO	DESCRIPTION
8912	8" x 12" motorized, flat mirror
8912H	Heated, 8" x 12" motorized, flat mirror
8912D	8" x 12" motorized, convex mirror
8912DH	Heated, 8" x 12" motorized, convex mirror
M8912	8" x 12" hand adjustable, flat mirror
M8912H	Heated, 8" x 12" hand adjustable, flat mirror
M8912D	8" x 12" hand adjustable, convex mirror
M8912DH	Heated, 8" x 12" hand adjustable, convex mirror
8960	8" x 6" motorized, convex mirror
8960H	Heated, 8" x 6" motorized, convex mirror
M8960	8" x 6" hand adjustable, convex mirror
M8960H	Heated, 8" x 6" hand adjustable, convex mirror
GLA1049	Flat glass for the #8912 mirror head
GLA2053	Convex glass for the #8912 mirror head
GLA2054	Convex glass for the #8960 mirror head
GLH6017	Heated, flat glass for the #8912 mirror head
GLH6517	Heated, convex glass for the #8912 mirror head
GLH6518	Heated, convex glass for the #8960 mirror head
CAR5032	Glass carrier & motor assembly for 8912 mirror
CAR5033	Glass carrier & hand swivel assembly for M8912 mirror
CAR5034	Glass carrier & motor assembly for 8960 mirror
CAR5035	Glass carrier & hand swivel assembly for M8960 mirror
BAK5040	Mirror housing for 8912 & M8912 mirrors
BAK5039	Mirror housing for 8960 & M8960 mirrors
SCR7020	Mounting clamp & screw kit for 8912 & 8960 mirrors
