Off-Road Mirrors

Built from heavy duty safety glass and shatter proof lenses, our mirrors serve the off-road industries like no other.

Off-Road Mirrors image

Off-Road Mirrors small image

Drivers of mining trucks are often hindered by blind spots and lack of visual access to the ground. The CA1444F Remote Mirror provides drivers with confirmation of work areas and danger zones around the truck. Improve safety for both the driver and ground based workers with a remote control mirror that FITS your truck.

  • Dimensions: 44” x 14” x 9” (1118mm x 356mm x 229mm)
  • Weight: 70 +/- 5lbs. (32 +/- 2 kg)
  • Housing Material: Aluminum Alloy and ABS
  • Housing Finish: Black Polyester Powder Coating on exposed metal surfaces, tested for corrosion resistance in accordance with ASTM B117-90 (salt spray)
  • Hoist Attachment Preparation: M12 Threaded Hole (Top Access)
  • Mounting Requirements: Saddle Clamps (included) for Ø2.0” tubing
  • Lens Range of Motion: +/- 8° up/down; +/- 8° left/right
  • Operating Temperature Range: -30°C to 60°C
  • Storage Temperature Range: -40°C to 65°C
  • Voltage Range: 12V or 24V
  • Amp Draw Motors: 3.5A each at 12V
  • Amp Draw Total (with Heater Function): 12A

*Mirror lens replacement does not require mirror head removal”

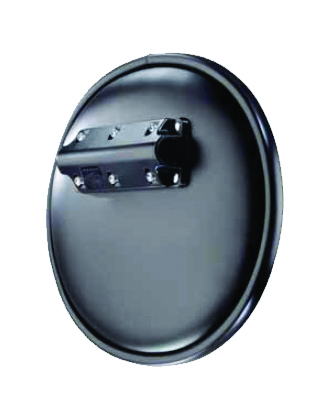

Off-Highway Mirror
Please Consult Rosco For Parts
