IntegraStyle®

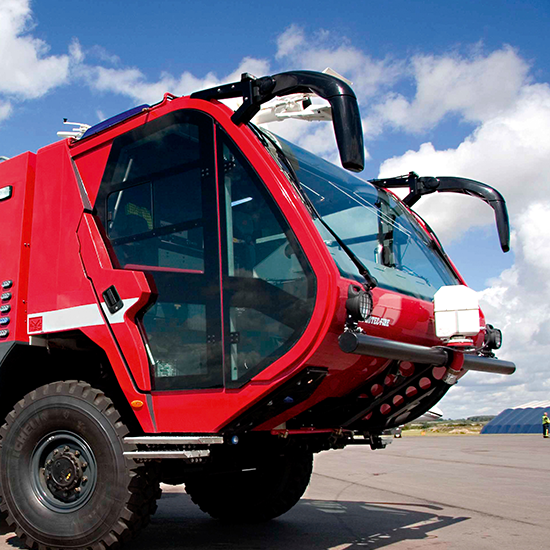

The unique, first of its kind three lens mirror system, IntegraStyle®, is a modern aerodynamic mirror system that protects any vehicle with multiple views.
The development of the IntegraStyle® concept came from a need for a modern aerodynamic mirror system to complement the appearance and performance of fire trucks.
- New, modern design compliments the aerodynamic characteristic of the vehicle.
- No visible fasteners or wires.
- Reduced maintenance required (fewer components due to integration of all 3 lenses in a single mirror head).
- Highly reliable construction tested under extreme road and weather conditions.
- Rigid structure prevents vibrations.
- Housing made from heavy-duty A.S.A. injection molded resin.
- Flat and convex mirrors are separately four-way motorized and heated with manually-adjusted units also available.
- Break-away mechanism allows mirror head to “fold” upon collision with an obstacle, avoiding costly repairs.
Complete Assembly | |
---|---|
PART NO | DESCRIPTION |
32A2F41CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable. Driver and passenger sides. |
32A2F42CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable. Heated driver and passenger sides. |
32A2F41BBP | Integrated mirror system with crossview and rearview sections. Motorized. Driver and passenger sides. |
32A2F42BBP | Integrated mirror system with crossview and rearview sections. Motorized. Heated driver and passenger sides. |
32A2KE1CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable driver and passenger sides. Canadian specifications. |
32A2KE2CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable. Heated driver and passenger sides. Canadian specifications. |
32A2KE1BBP | Integrated mirror system with crossview and rearview sections. Motorized.Driver and passenger sides. Canadian specifications. |
32A2KE2BBP | Integrated mirror system with crossview and rearview sections. Motorized. Heated. Driver and passenger. |
Hand Adjustable Non-Heated | |
---|---|
PART NO | DESCRIPTION |
32A2H41CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable. Driver side. |
32A2C41CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable. Passenger side. |
M1016 | Rearview section, including flat & convex glass & carrier assemblies. Hand adjustable. |
GLA3005 | Flat glass. |
GLA4009 | Convex glass |
CAR5002 | Flat carrier assembly. Hand adjustable. |
CAR5003 | Convex carrier assembly. Hand adjustable. |
Hand Adjustable Heated | |
---|---|
PART NO | DESCRIPTION |
32A2H42CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable. Heated. Driver side. |
32A2C42CCP | Integrated mirror system with crossview and rearview sections. Hand adjustable. Heated. Passenger side. |
M1016H | Rearview section, including flat & convex glass & carrier assemblies. Hand adjustable. Heated. |
GLH6001 | Flat glass. Heated |
GLH6501 | Convex glass. Heated. |
CAR5002 | Flat carrier assembly. Hand adjustable. |
CAR5003 | Convex carrier assembly. Hand adjustable. |
HAR2015 | Wire harness for heated mirror assembly. |
Motorized Non-Heated | |
---|---|
PART NO | DESCRIPTION |
32A2H41BBP | Integrated mirror system with crossview and rearview sections. Motorized. Driver side. |
32A2C41BBP | Integrated mirror system with crossview and rearview sections. Motorized. Passenger side. |
1016 | Rearview section, including flat & convex glass & carrier assemblies. Motorized. |
GLA3005 | Flat glass. |
GLA4009 | Convex glass. |
CAR5005 | Flat carrier assembly. Motorized. |
CAR5004 | Convex carrier assembly. Motorized. |
HAR2013 | Wire harness for motorized mirror assembly. |
Motorized Heated | |
---|---|
PART NO | DESCRIPTION |
32A2H42BBP | Integrated mirror system with crossview and rearview sections. Motorized. Heated. Driver side. |
32A2C42BBP | Integrated mirror system with crossview and rearview sections. Motorized. Heated. Passenger side |
1016H | Rearview section, including flat & convex glass & carrier assemblies. Motorized. Heated. |
GLH6001 | Flat glass. Heated. |
GLH6501 | Convex glass. Heated. |
CAR5005 | Flat carrier assembly. Motorized |
CAR5004 | Convex carrier assembly. Motorized. |
HAR2012 | Wire harness for motorized heated mirror assembly |
Crossview | |
---|---|
PART NO | DESCRIPTION |
3490 | Crossview mirror assembly |
3490H | Crossview mirror assembly. Heated. |
3490/1 | Crossview lens. |
3490/H/1 | Crossview lens. Heated. |
RIM 1046 | Mounting gasket for crossview lens. |
Mirror Arm | |
---|---|
PART NO | DESCRIPTION |
ASY4401 | Arm assembly. Driver side. |
ASY4402 | Arm assembly. Passenger side. |
ASY4475 | Arm cover kit. |
ASY4450 | Cap-boot assembly. Driver side. |
ASY4451 | Cap-boot assembly. Passenger side. |
