AccuStyle®

AccuStyle, our most versatile rearview mirror system, offers a variety of options and mounting styles to suit any bus application.

AccuStyle® image

AccuStyle® image

AccuStyle® small image
AccuStyle® small image

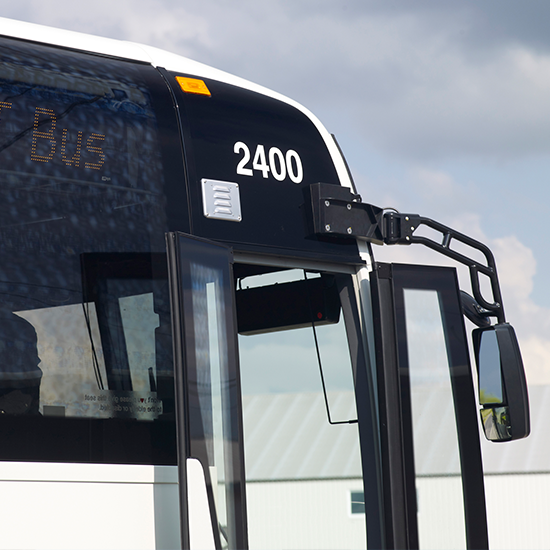

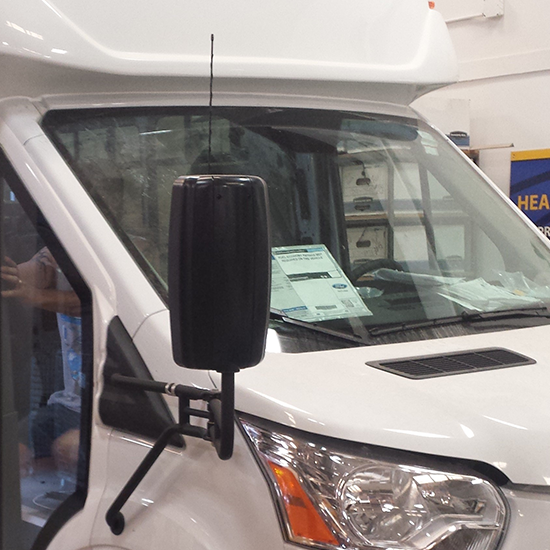

The AccuStyle® mirror is a versatile and uniquely stylized product with application in nearly every industry. The AccuStyle® mirror head can be mounted on mirror arms which are 3/4” O.D. tube up through 1-1/8” O.D. tube via the removable clamp cover on the back of the mirror shell – making OEM installation as well as aftermarket retrofit a breeze. The AccuStyle® mirror can be mounted on a traditional arm or “loop” (two point mount), or can be a single point overhang or upright mount. Finishes are available in black and chrome.

AccuStyle® UNIVERSAL 8x15 MIRRORS
PART NODESCRIPTION
8158" x 15" dual mirror, two point mount, motorized, 12 or 24 volt
815OG8" x 15" dual mirror, overhang mount, motorized, 12 or 24 volt
815U8" x 15" dual mirror, upright mount, motorized, 12 or 24 volt
M8158" x 15" dual mirror, two point mount, hand adjustable
M815OG8" x 15" dual mirror, overhang mount, hand adjustable
M815U8" x 15" dual mirror, upright mount, hand adjustable
815F8" x 15" single mirror w/7"x14" flat glass, two point mount, motorized, 12 or 24 volt
815FOG8" x 15" single mirror w/7"x14" flat glass, overhang mount, motorized, 12 or 24 volt
815FCOG8" x 15" single mirror w/7"x14" convex glass, overhang mount, motorized, 12 or 24 volt
815FC8" x 15" single mirror w/7"x14" convex glass, two point mount, motorized, 12 or 24 volt
815FU8" x 15" single mirror w/7"x14" flat glass, upright mount, motorized, 12 or 24 volt
815FCU8" x 15" single mirror w/7"x14" convex glass, upright mount, motorized, 12 or 24 volt
M815F8"x15" single mirror w/7"x14" flat glass, two point mount, hand adjustable
M815FOG8"x15" single mirror w/7"x14" flat glass, overhang mount, hand adjustable
M815FU8"x15" single mirror w/7"x14" flat glass, upright mount, hand adjustable
815SL8"x15" dual mirror, two point mount, motorized 12v w/Left signal LEDs
815SR8"x15" dual mirror, two point mt., motorized 12v w/Right signal LEDs
815SLU8"x15" dual mirror, upright mount, motorized 12v w/Left signal LEDs
815SRU8"x15" dual mirror, upright mount, motorized 12v w/Right signal LEDs
815SLOG8"x15" dual mirror, overhang mount, motorized 12v w/Left signal LEDs
815SROG8"x15" dual mirror, overhang mount, motorized 12v w/Right signal LEDs
815/17" x 9.5" flat mirror glass.
815C/17" x 9.5" convex mirror glass.
815D/17" x 4" convex mirror glass.
815F/17" x 14" flat mirror glass.
815FC/17" x 14" convex mirror glass.
815SL/17" x 9.5" flat mirror glass with Left signal LEDs.
815SR/17" x 9.5" flat mirror glass with Right signal LEDs.
815/47" x 9.5" flat mirror carrier and motor assembly.
815D/47" x 4" convex mirror carrier and motor assembly.
815F/47" x 14" flat or convex mirror carrier and motor assembly.
M815/47" x 9.5" flat mirror carrier and hand swivel assembly.
M815D/47" x 4" convex mirror carrier and hand swivel assembly.
M815F/47" x 14" flat or convex mirror carrier and hand swivel assembly.
CAP1034Grommet, rubber, for 1" tube, no harness hole
CAP1042Rear access cover for 815 mirror head, two point mount
CAP1044Grommet, rubber, for 1" tube, harness hole
CAP1045Grommet, rubber, for 3/4" tube, harness hole
CAP1056Rear access cover for 815 mirror head, overhang or upright mt.
CAP1058Grommet, rubber, for 3/4" tube, no harness hole
815/SHELL815 two point mount housing (includes internal spine/clamps)
815OGU/SHELL815 overhang/upright housing (includes internal spine/clamps)
8188" x 17" dual mirror, two point mount, motorized, 12 or 24 volt
818OG8" x 17" dual mirror, overhang mount, motorized, 12 or 24 volt
818U8" x 17" dual mirror, upright mount, motorized, 12 or 24 volt
M8188" x 17" dual mirror, two point mount, hand adjustable
M818OG8" x 17" dual mirror, overhang mount, hand adjustable
M818U8" x 17" dual mirror, upright mount, hand adjustable
818F8" x 17" single mirror w/7"x16" flat glass, two point mount, motorized, 12 or 24 volt
818FOG8" x 17" single mirror w/7"x16" flat glass, overhang mount, motorized, 12 or 24 volt
818FU8" x 17" single mirror w/7"x16" flat glass, upright mount, motorized, 12 or 24 volt
M818F8"x17" single mirror w/7"x16" flat glass, two point mount, hand adjustable
M818FOG8"x17" single mirror w/7"x16" flat glass, overhang mount, hand adjustable
M818FU8"x17" single mirror w/7"x16" flat glass, upright mount, hand adjustable
818FC8" x 17" single mirror w/7"x16" convex glass, two point mount, motorized, 12 or 24 volt
818FCOG8" x 17" single mirror w/7"x16" convex glass, overhang mount, motorized, 12 or 24 volt
818FCU8" x 17" single mirror w/7"x16" convex glass, upright mount, motorized, 12 or 24 volt
818FCU818SL 8"x17" dual mirror, two point mount, motorized 12v w/Left signal LEDs
818SLOG8"x17" dual mirror, overhang mount, motorized 12v w/Left signal LEDs
818SLU8"x17" dual mirror, upright mount, motorized 12v w/Left signal LEDs
818SR8"x17" dual mirror, two point mt., motorized 12v w/Right signal LEDs
818SROG8"x17" dual mirror, overhang mount, motorized 12v w/Right signal LEDs
818SRU8"x17" dual mirror, upright mount, motorized 12v w/Right signal LEDs
818/17" x 9.5" flat mirror glass. 818C/1 7" x 9.5" convex mirror glass.
818D/17" x 6" convex mirror glass. 818F/1 7" x 16" flat mirror glass.
818FC/17" x 16" convex mirror glass.
818SL/17" x 9.5" flat mirror glass with Left signal LEDs.
818SR/17" x 9.5" flat mirror glass with Right signal LEDs.
818/47" x 9.5" flat mirror carrier and motor assembly.
818D/47" x 6" convex mirror carrier and motor assembly.
818F/47" x 16" flat or convex mirror carrier and motor assembly.
M818/47" x 9.5" flat mirror carrier and hand swivel assembly.
M818D/47" x 6" convex mirror carrier and hand swivel assembly.
M818F/47" x 16" flat or convex mirror carrier and hand swivel assembly.
818/SHELL818 two point mount housing (includes internal spine/clamps).
818OGU/SHELL818 overhang/upright housing (includes internal spine/clamps).
